How to: Setup Openfire / Jabber XMPP Server

An XMPP server provides messaging, presence, and XML routing features in one package. This guide will demonstrate how to setup an XMPP server on SkySilk Linux VPS.


How to: Setup Openfire / Jabber XMPP Server

We will be downloading, installing, and configuring our Openfire XMPP server. After we're done, you will have a functional XMPP messaging server.


Start by logging onto you VPS via SSH. You may follow this guide to help you SSH into your SkySilk VPS


Install dependencies and updates

First we want to make sure that your system has updated components installed as well as other dependencies:

yum update
yum install -y wget
yum install -y epel-release
yum install -y glibc.i686
yum install -y zlib.i686 libstdc++.i686


Download and install the Openfire rpm

We'll be installing wget, then downloading the official Openfire rpm:

wget "https://www.igniterealtime.org/downloadServlet?filename=openfire/openfire-4.3.2-1.i686.rpm" -O openfire-4.3.2-1.i686.rpm


Install the rpm:

yum install -y openfire-4.3.2-1.i686.rpm


Start the openfire service

systemctl start openfire.service


Install and configure a PostgreSQL

We'll be installing PostgreSQL:

yum install postgresql-server postgresql-contrib


Enable the service to start on boot:

systemctl enable postgresql.service


Initialize the PostgreSQL Database:

 postgresql-setup initdb


Start the postgresql service:

systemctl start postgresql.service


Create a database for Openfire and configure the user


Switch to postgres user context:

su - postgres


Set password for postgres database user. This is used to administer postgresql:

psql
\password postgres
\quit


Create database "openfire":

createdb openfire


Create database user "openfire":

createuser -P openfire


Next we'll modify the postgresql configuration to require the client to supply an MD5-encrypted password for authentication.


Open the /var/lib/pgsql/data/pg_hba.conf file in a text editor and under the METHOD column, change the peer or ident values to md5.

# TYPE  DATABASE        USER            ADDRESS                 METHOD

# "local" is for Unix domain socket connections only
local   all             all                                     md5
# IPv4 local connections:
host    all             all             127.0.0.1/32            md5
# IPv6 local connections:
host    all             all             ::1/128                 md5
# Allow replication connections from localhost, by a user with the
# replication privilege.
#local   replication     postgres                                md5
#host    replication     postgres        127.0.0.1/32            md5
#host    replication     postgres        ::1/128                 md5



Exit postgres user context:

exit


Restart PostgreSQL service

systemctl restart postgresql.service



Open necessary ports

9090 and 9091 are the typical ports utilized by Openfire, we will open them up:

firewall-cmd --permanent --zone=public --add-port=9090/tcp
firewall-cmd --permanent --zone=public --add-port=9091/tcp
firewall-cmd --reload



You're now ready to continue the setup via the GUI.


Complete setup via the GUI


Browse to the setup GUI URL:


 http://[IP_ADDRESS_OF_YOUR_SERVER]:9090


This is very straight forward. You'll walk through setting up the language, server settings, database settings, profile settings, and admin account.

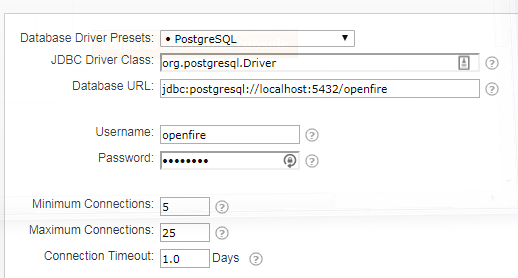

The key points here are the Database configuration. Choose PostgreSQL as seen below and in the Database URL make sure to point to our local PostgreSQL installation and the openfire database we created. The username and password are for the openfire database user we created in an earlier step.

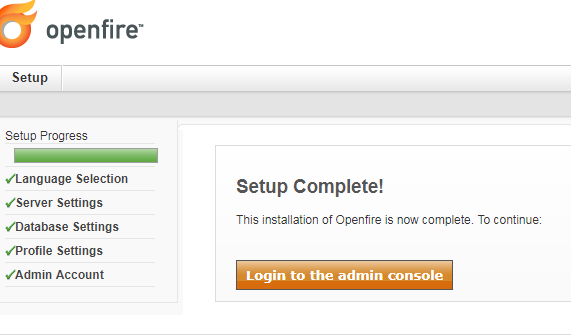

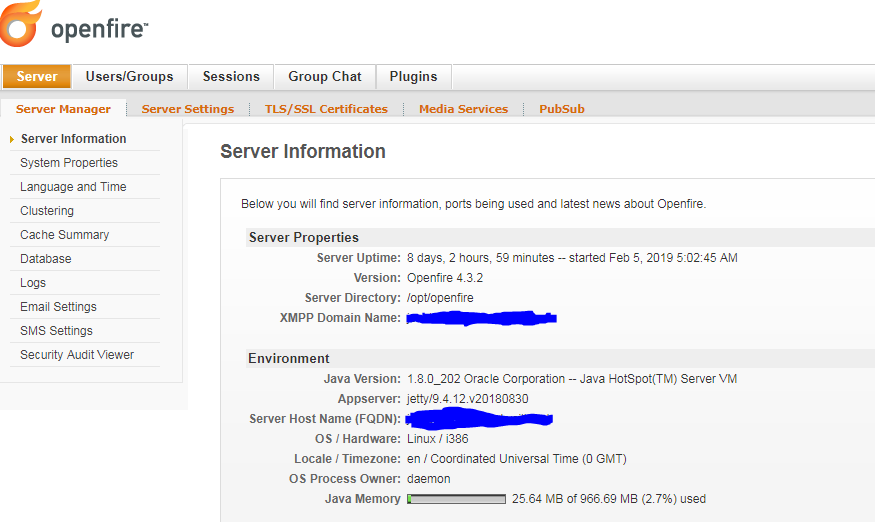

Once you are done with the wizard you'll see this and you're done. Login to your admin console
